As a digital-only version of the original SunSentry™, the SunSentry 20 features an AC power input inside the main enclosure instead of a separate AC pull box. Specifically designed to support the irradiance and weather reporting needs of utility-scale solar farms, this solar operational meteorological (met) monitoring station provides weather reporting data for a wide variety of applications.
The SunSentry 20 establishes a new chapter of met station design and ease of use. Each station is standardized, stocked, follows the industry requirements of IEC 61724-1:2021, and exceeds IEC 61000-4-5 Class 4 surge immunity levels. Station installation is made easy via pile-mountable hardware, bulkhead connectors, and the renowned SunSentry web user interface (UI).

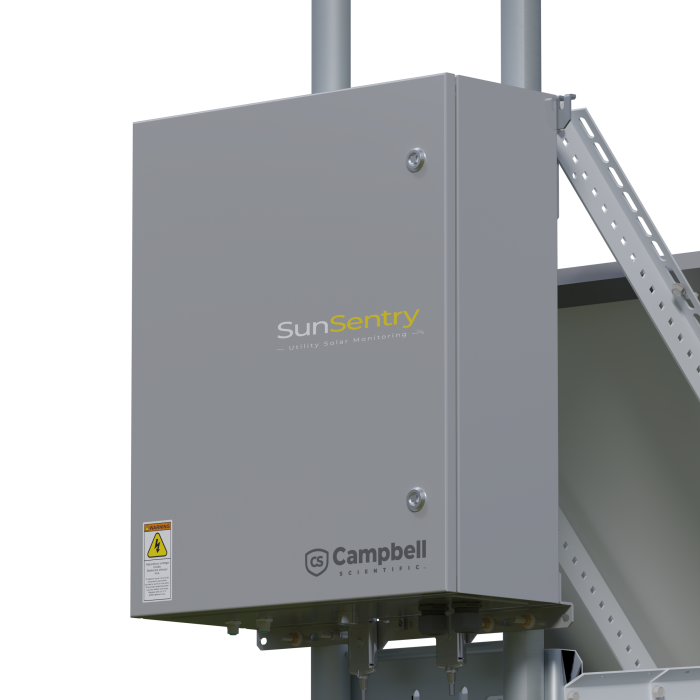

Note: Some of the SunSentry 20 images are shown with optional mounting hardware, solar panels, and sensors that are sold separately.
Leer másVentajas y características
- Integrated AC/DC power supply, eliminating the need for a separate AC/DC enclosure or add-on
- Two bulkhead-mounted five-pin M12 connectors providing two independent communications channels
- Compatible with Campbell Scientific's RS485CBL ecosystem
- Optional accessories available for surge protection, battery backup, and solar power input
- Optional smart sensor to monitor temperature and humidity within the enclosure and detect door openings and closings
Imágenes
Descripción detallada
The two bulkhead-mounted, five-pin M12 connectors provide two independent communications channels. One channel supports the met tower sensors, whereas the other channel supports the solar panel array sensors.
Productos similares
Compatibilidad
The SunSentry 20 is digital, RS-485 compatible only.
The SunSentry 20 supports a single sensor array in addition to a standard array of met sensors. Adapters must be used with Campbell Scientific's RS485CBL system. Sensors must be daisy-chained to the SunSentry 20 for fast, simple installation.
Especificaciones
| Operating Temperature | -20° to +60°C |
| Processor | CR1000Xe (For CR1000Xe Measurement and Control Datalogger specifications, refer to the CR1000Xe product page.) |
| Power Monitoring | Batt, AC |
| Power Input | 90 to 264 Vac |
| Maximum Power for Sensors | 100 W |
| Battery Backup | Up to 55 Ah |
| Enclosure Material | 304SS |
| Enclosure Rating | IP66 |
| Lockable Box | Requires included key tool to open |
| Battery-Backed Data Logger | The data logger is battery backed while external power is disconnected. |
| Battery-Backed Main Met Station | The system and sensor power are battery backed while external power is disconnected for a minimum of three days (UPS version only). |
| Enclosure Dimensions | 60 x 50 x 20 cm (23.62 x 19.69 x 7.87 in.) |
| Enclosure Weight | 15.88 kg (35 lb) |
| CR1000Xe Dimensions | 23.8 x 10.1 x 6.2 cm (9.4 x 4.0 x 2.4 in.); additional clearance required for cables and wires |
| CR1000Xe Weight | 0.86 kg (1.9 lb) |
Memory |
|
| Total Onboard | 128 MB of flash + 4 MB battery-backed SRAM (A 2 GB SD card is included.) |
| Data Storage | 4 MB SRAM + 72 MB flash (extended data storage automatically used for auto-allocated data tables not being written to a card) |
| Data Storage Expansion | Removable microSD flash memory, up to 16 GB |
Power Source |
|
| AC Voltage Range | 100 to 240 Vac, 15% to +10% |
| DC Voltage Range | 110 to 250 Vdc, 18% to +40% |
| Frequency Range (fN) | 50 to 60 Hz, ±10% |
UPS Battery |
|
| Voltage Range | 24 to 27.1 Vdc (2 x 12 Vdc, nominal) |
| Battery Type | Flooded/AGM |
