Resumen

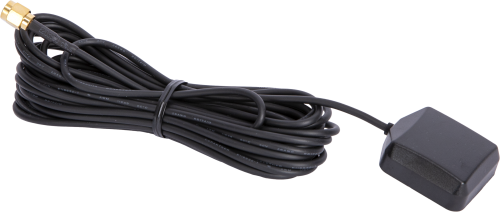

The 31182 is a magnetic mount GPS patch antenna. It is typically used where GPS reception is readily available and concern is low for snow buildup completely covering the antenna. The 31182 is also commonly used in cost-sensitive applications or applications that require a small-sized, low-profile antenna. This antenna connects to a GPS receiver with SMA connector, such as that found in the AL200, LS300G, and TX320. The antenna package is waterproof and corrosion resistant. The 31182 conveniently mounts to any magnetic surface, which includes the 30626 and CM235 mounts offered by Campbell Scientific.
Imágenes
Compatibilidad
Nota: lo siguiente muestra información de compatibilidad notable. No es una lista de todos los productos compatibles.
Dispositivos Comunicaciones
| Producto | Compatible | Nota |
|---|---|---|
| TX320 (retired) |
Información de compatibilidad adicional
The 31182 is specifically compatible with the AL200, TX320, TX312, and LS300G. Generally, the 31182 is compatible with devices that have an integrated GPS receiver with an SMA jack connector.
Especificaciones
- Output Connector: SMA connector termination
- Operating Temperature Range: -40° to +85°C
- Humidity: 20 to 95%
- Frequency Range: 1575.42 MHz
- Gain: up to 27 dBi @ 25°C typical
- Output Impedance: 50 Ω
- LNA Noise Figure: as low as 1.5 db @ 25°C
- Supply Voltage: 3 V ±0.3 V
- Power Consumption: 20 mA maximum; 15 mA typical
- Cable: 5 m (16.4 ft) of RG-174 coaxial cable
- Dimensions:
37.4 x 34 x 12.9 mm
1.47 x 1.34 x 0.51 in. - Weight (without cable): 25 g (0.88 oz)
